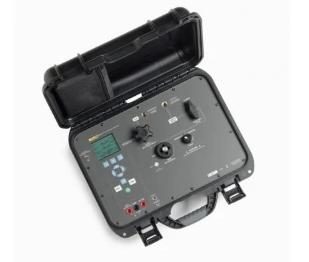

Fluke 3130-G2M Portable Pressure Calibrator

This series covered Siemens, Schneider, ABB, Mitsubhishi, Fanuc GE, Honeywell Omron,Fuji,Allen-Bradley etc , Hoping we can help you when needed!

Fluke

Specifications: Fluke 3130-G2M Portable Pressure Calibrator

Environmental
Operating temperature	-10°C to +50°C
Storage Temperature	-20°C to +60°C
Power requirements	12 V DC (Universal ac adapter/charger supplied)
Battery	Internal 3800 mAh advanced NiMH pack
Operating Time
On full charge	Approx 50 hours (Measure only or external air; no pump)
Using internal pump	Approx 100 calibration cycles to 300 psi
Physical
Dimensions (L x W x D)	15.25 x 12 x 7 in
Weight	~7 kg (15 lb)
EMI/RFI conformance	EN61326:2006 Annex A
Connectors/ports	1/8 in NPT (External supply port and test port)
Included accessories	Manual, NIST-traceable certificate, test leads, universal ac adapter/charger
Ranges
Pressure (internal pump)	-80 kPa to 2 MPa (-12 to 300 psi, -0.8 to 20 bar)
Pressure (external air)	0 to 2 MPa (0 to 300 psi, 0 to 20 bar)
mA	0 to 24.000 mA
Volts	0 to 30.000 V DC
Engineering units	psi, bar, mbar, kPa, MPa, kgf/cm2, mmH₂O @ 4°C, mmH₂O @ 20°C, cmH₂O @ 4°C, cmH₂O @ 20°C, inH₂O @ 4°C, inH₂O @ 20°C, inH₂O @ 60°F, mmHg @ 0°C, inHg @ 0°C
Instrumental Measurement Uncertainty
Pressure	0.025% of reading ±0.01% FS
mA	0.015% of reading ±0.002 mA
Volts	0.015% of reading ±0.002 V
Temperature Effect (All Functions)
No effect on accuracy on all functions from 15°C to 35°C
Add ±0.002% F.S./°C for temps outside of 15°C to 35°C
